Lab 3: Snake Game — Mutexes, Task Notifications, and Event Groups

Prerequisites

Complete Lab 2 Your multi-screen FreeRTOS dashboard from Lab 2 is the foundation for this lab.

Download Lab 3 Starter Basic snake skeleton to build upon.

Lab Sequence Review where this lab fits in the course.

---

Overview

How this lab fits the sequence

Lab 0 was bare-metal. Lab 1 introduced tasks, queues, and vTaskDelayUntil. Lab 2 added binary semaphores, software timers, and multi-file projects. Lab 3 goes further: you will protect shared state with a mutex, synchronize a producer/consumer pair using task notifications, and coordinate multiple game events using an event group — three primitives you have not used before.

The application is a Snake game. You are given a starter that draws a moving snake and nothing else. Everything interesting — food, scoring, collision detection, game states, speed scaling, and the synchronization that makes it all safe — is your responsibility to design and implement.

There is no reference implementation for the game logic. You will reason through the requirements, identify the race conditions yourself, and choose how to wire the tasks together.

---

Learning Objectives

After completing this lab, you will be able to:

• Explain the difference between a mutex and a binary semaphore, and know when to use each
• Protect a shared data structure so that concurrent reads and writes are safe
• Use task notifications to wake a consumer task exactly when new data is ready
• Use an event group to combine multiple boolean conditions into a single synchronization object
• Design a finite state machine that spans multiple tasks
• Reason about race conditions before writing code, not after

---

Grading Rubric

Step	Description	Points
1	Build and run the starter; document the race conditions that exist in the starter code	8
2	Protect all shared game state with a mutex; justify every acquire/release site	15
3	Food system: random placement avoiding the snake body, disappears when eaten	12
4	Game logic: direction reversal prevention, self-collision and wall-mode choice	15
5	Score and speed scaling: score increments on eat; game tick decreases as score grows	10
6	Use task notifications to trigger rendering only when game state changes	10
7	Use an event group to manage FOOD_EATEN and GAME_OVER events for audio feedback	5
—	Lab report	25
—	Total	100

---

Understanding the Starter Code

Before writing a single line of code, study the starter carefully. This section explains how everything is built. Read it completely — the questions at the end of this part require you to understand the internals.

Task Architecture

The project uses three FreeRTOS tasks running concurrently:

┌─────────────────────────────────────────────────────────────┐
│                      FreeRTOS Scheduler                      │
├──────────────────┬──────────────────┬───────────────────────┤
│   vInputTask     │   vSnakeTask     │   vRenderTask         │
│   (priority 2)   │   (priority 2)   │   (priority 1)        │
│                  │                  │                        │
│  Reads joystick  │  Advances snake  │  Draws the grid,      │
│  and buttons     │  position every  │  snake, and any        │
│  every 10 ms     │  150 ms          │  overlays every 33 ms │
│                  │                  │                        │
│  Writes:         │  Reads:          │  Reads:               │
│  gameState       │  gameState       │  snake[], snakeLength  │
│  (direction,     │  (direction,     │  gameState (for HUD)  │
│  isRunning,      │  isRunning,      │                        │
│  needsReset)     │  needsReset)     │                        │
│                  │  Writes:         │                        │
│                  │  snake[]         │                        │
│                  │  snakeLength     │                        │
└──────────────────┴──────────────────┴───────────────────────┘

Notice which tasks write data and which tasks read it. This overlap is the source of the race conditions you will fix in Part 1.

File Structure

• main.cpp # System init, button/joystick setup, three task definitions
• game.h / game.cpp # Snake state structs, ResetGame(), moveSnake()
• display.h / display.cpp # LCD_Init(), DrawGame(), drawCell()
• app_objects.h # Shared handles declared here: gContext, gSysClk

app_objects.h declares objects that are shared across files. It does not define them — definitions live in .cpp files. This is the extern / define pattern from Lab 2. As you add synchronization primitives (mutex, event group, task handles), declare them here.

game.h / game.cpp owns all snake state: the direction enum, the SnakeGameState struct, the Position array, and the two functions ResetGame() and moveSnake().

display.h / display.cpp owns everything LCD-related. DrawGame() reads the snake array and renders a complete frame. drawCell() is a static helper that maps a grid coordinate to pixel coordinates.

main.cpp wires everything together: clock init, button and joystick setup, task creation, and vTaskStartScheduler(). The three task functions are also defined here.

The Grid System

The LCD is 128×128 pixels. The game uses an 8×8 pixel cell size, giving a 16×16 grid:

Grid: 16 columns × 16 rows = 256 cells
Cell: 8×8 pixels

Cell (gx, gy) → pixel top-left at (gx × 8, gy × 8)
             → pixel bottom-right at (gx × 8 + 7, gy × 8 + 7)

drawCell() in display.cpp performs this mapping and fills the cell with a solid color.

Snake Representation

The snake is stored as an array of grid positions:

Position snake[MAX_LEN];   // array of {x, y} pairs
uint8_t  snakeLength;      // how many entries are active

• snake[0] is the head — drawn in green.
• snake[1] through snake[snakeLength - 1] are body segments — drawn in yellow.
• Positions beyond snakeLength - 1 exist in memory but are ignored.

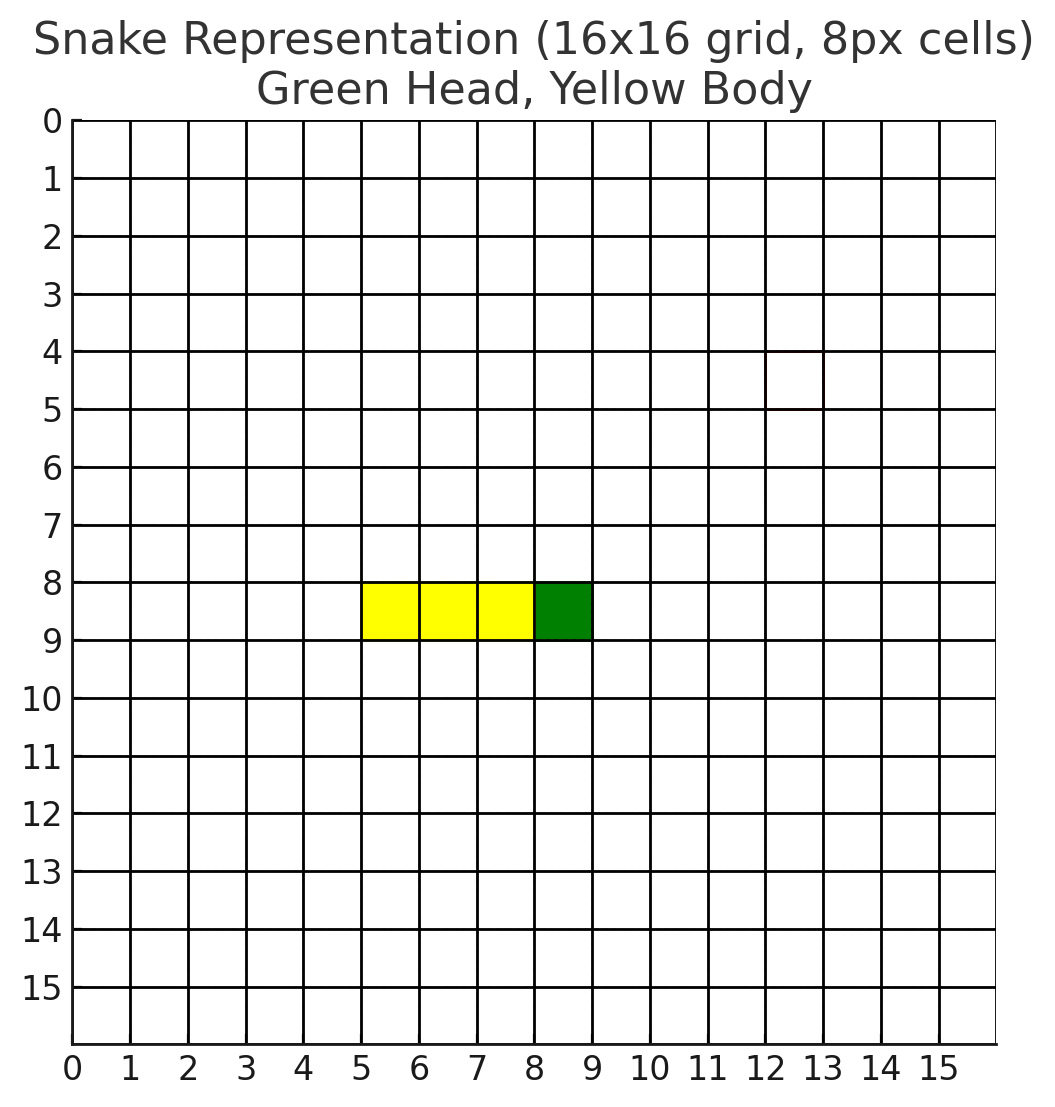

_{Snake Grid — 16×16 cells, each 8×8 pixels}

Movement Logic

moveSnake() runs every game tick. It does two things in order:

Step 1 — Shift the body. Every segment copies the position of the segment ahead of it. The tail (last segment) is overwritten:

for (uint8_t i = snakeLength; i > 0; i--) {
    snake[i] = snake[i - 1];   // segment i follows segment i-1
}
// After the loop: snake[0] still holds the OLD head position,
// and every other segment has moved one step forward.

Step 2 — Move the head. Update snake[0] based on currentDirection. The current code wraps around the edges — reaching the right wall brings the snake out the left side:

case RIGHT:
    snake[0].x = (snake[0].x == GRID_SIZE - 1) ? 0 : snake[0].x + 1;
    break;

How growth works (you will implement this): if you skip removing the tail — that is, if you do not overwrite snake[snakeLength - 1] — and instead increment snakeLength, the snake becomes one segment longer. The body-shift loop already copies into snake[snakeLength], so the tail slot is ready; you just need to keep it.

Current Limitations

The starter is deliberately incomplete. You will add everything listed below:

Missing feature	Where to add it
Mutex protection for shared game state	app_objects.h, main.cpp, game.cpp
Food spawning and detection	game.h / game.cpp
Snake growth when eating	game.cpp inside moveSnake() or caller
Direction reversal prevention	vInputTask in main.cpp
Self-collision detection	game.cpp after moving the head
Score counter and display	game.h / game.cpp, display.cpp
Speed scaling	vSnakeTask in main.cpp
Game over state and screen	game.h, display.cpp, vSnakeTask
Task notification (render on demand)	main.cpp
Event group for audio events	main.cpp, app_objects.h, new buzzer.cpp

---

Part 0 — Find the Bugs

Before fixing anything, you must identify what is broken.

Read the source files before answering

Every question below requires you to read the actual source files, not just this document. If you cannot answer them, re-read the source.

Open each file and answer:

1. vSnakeTask writes to snake[] and snakeLength. vRenderTask reads them at the same time. Is there any protection? What does the ARM Cortex-M4 guarantee about multi-word struct accesses across tasks?

2. vSnakeTask reads gameState.currentDirection while vInputTask writes it. Is a volatile declaration enough to make this safe? Why or why not?

3. vRenderTask wakes up every 33 ms regardless of whether anything changed. How many unnecessary redraws per second does this cause when the game is paused?

Report checkpoint

Your lab report must include your written answers to these three questions. The point of this step is to find the problems before you fix them, not to fix them first and then justify.

---

Part 1 — Mutex: Protecting Shared State

Read the guide first

Semaphores and Mutexes Guide Required reading. Pay particular attention to the mutex vs. binary semaphore section.

After reading, you should be able to answer:

• What property does a mutex have that a binary semaphore does not?
• Why is priority inheritance relevant when a high-priority task waits for a low-priority task to release a mutex?
• Can you call xSemaphoreTake() on a mutex from within an ISR? Why not?

What needs protection

You need one mutex for game state — not necessarily one per variable. The protected region must be as short as possible: take the mutex, do the minimum, give it back.

Think through which data structures are read by one task and written by another:

Data	Written by	Read by
snake[], snakeLength	vSnakeTask	vRenderTask
gameState.currentDirection	vInputTask	vSnakeTask
food position (you will add this)	vSnakeTask	vRenderTask
score (you will add this)	vSnakeTask	vRenderTask

You must decide: one mutex for all of this, or separate mutexes for separate resources? There is no single correct answer — document your choice and justify it.

Mutex rules

• Never call vTaskDelay() while holding a mutex.
• Never block on another synchronization object while holding a mutex.
• Always pair every Take with a Give — even on error paths.
• Do not create the mutex after the scheduler starts; create it before vTaskStartScheduler().

Implementation checklist

1. Define and create the mutex (or mutexes) before starting the scheduler.
2. Identify every code site where shared data is accessed.
3. Wrap each site with Take / Give. Keep the critical section as short as possible.
4. Verify: if you add vTaskDelay(pdMS_TO_TICKS(500)) inside the critical section, the game should freeze. Remove that test afterwards.

Report Question 1: Draw the task timeline for a single frame. Show which task holds the mutex and for how long. What is the worst-case latency imposed on vRenderTask by waiting for the mutex?

---

Part 2 — Game Logic

This is the largest design section. The starter provides the grid, the position array, and moveSnake(). Everything below is yours to design.

2.1 Direction reversal prevention

The current code lets the player reverse direction instantly. If the snake is moving right and the player pushes left, the head moves into the second body segment — an instant self-collision.

Fix this inside the input handling code. The rule: if the requested direction is the exact opposite of the current direction, ignore the request. Implement this with a simple comparison, not a lookup table.

Tip

The directions are UP, DOWN, LEFT, RIGHT. Which pairs are opposites? Define that clearly in code.

2.2 Food system

Add a Position gFood variable that represents the current fruit position. You need:

Spawning: Place food at a random grid position that does not overlap any snake segment. The starter does not include a random number generator — use rand() from <stdlib.h> seeded with a timer value, or implement a simple LCG.

Detection: After moveSnake() advances the head, check whether the new head position matches gFood. If it does, food was eaten.

Growth: When food is eaten, do not remove the tail segment. This is already how a snake grows — if you shift the body forward but keep the tail, the snake becomes one segment longer. Think carefully about when to increment snakeLength.

Re-spawn: After eating, spawn new food at another valid position.

Think about ownership: which task spawns food? Which task checks for eating? How do you ensure food position is not read while it is being written?

2.3 Collision detection

Implement self-collision: after moving the head, compare the head’s position against every body segment from index 1 to snakeLength - 1. If the head matches any body segment, the game ends.

You choose whether walls kill the player or wrap around. Document your choice in the report. If you implement wall collision, the existing wrap-around code in moveSnake() must be replaced.

2.4 Score and speed scaling

Add a uint16_t gScore variable. Increment it each time food is eaten. The score must be displayed on screen.

The game tick period controls snake speed. Start at 150 ms (as in the starter). Each time food is eaten, reduce the period by a fixed amount (for example, 5 ms). Set a minimum period floor (for example, 60 ms) so the game does not become unplayable.

The period controls the vTaskDelay inside vSnakeTask. You need to recalculate this dynamically after each food event.

2.5 Game over state

When a collision is detected, the game should enter a GAME_OVER state. The display should show a game over message with the final score. Pressing S2 should restart the game.

This requires a state machine. At minimum:

PLAYING → GAME_OVER  (on collision)
GAME_OVER → PLAYING  (on S2 press, via ResetGame)
PAUSED (S1 toggles; only valid during PLAYING)

Add this state to SnakeGameState. The state must be readable by both vSnakeTask and vRenderTask.

---

Part 3 — Task Notifications: Event-Driven Rendering

What task notifications are

A task notification is a lightweight signal sent directly to a specific task. Unlike a semaphore, it requires no kernel object to be created — every FreeRTOS task already has a notification value built in.

The two functions you need:

// Send a notification to a task (from another task or ISR)
xTaskNotifyGive(TaskHandle_t xTaskToNotify);

// Wait for a notification (blocks until one arrives)
ulTaskNotifyTake(pdTRUE, TickType_t xTicksToWait);

ulTaskNotifyTake with pdTRUE clears the notification count after returning, so the next call will block until the next notification arrives.

Task Notifications Guide Complete guide to xTaskNotifyGive, ulTaskNotifyTake, and when to use notifications over semaphores.

The problem

vRenderTask currently wakes every 33 ms regardless of whether anything changed. When the game is paused, this produces ~30 identical frames per second for no reason. When the game is running, rendering may lag one full 33 ms tick behind the actual state change.

The solution

Make vSnakeTask notify vRenderTask every time it produces a new game state. vRenderTask blocks until notified rather than polling on a fixed timer.

To do this, vSnakeTask needs the task handle for vRenderTask. One clean way:

// main.cpp — declare before task creation
static TaskHandle_t xRenderHandle = NULL;

// Pass it to vSnakeTask via pvParameters, or make it a global.
// Then inside vSnakeTask, after each state update:
if (xRenderHandle != NULL) {
    xTaskNotifyGive(xRenderHandle);
}

Inside vRenderTask, replace vTaskDelayUntil with:

ulTaskNotifyTake(pdTRUE, portMAX_DELAY);
// draw the current state

What changes and what does not

The rendering rate is now driven by the game tick, not a fixed 33 ms timer. When the snake slows down (early game) the display updates less frequently. When the snake speeds up (high score) the display updates more frequently. Make sure your drawing code handles this correctly.

Report Question 2: Compare the old polling approach (vTaskDelayUntil every 33 ms) with the task-notification approach. When does the notification approach save CPU time? When might polling be preferable?

---

Part 4 — Event Groups: Coordinating Game Events

What event groups are

An event group holds a set of bits. Any task can set or clear any bit. Any task can wait for one or more bits to be set, optionally clearing them after the wait.

The key functions:

// Create
EventGroupHandle_t xEventGroupCreate(void);

// Set bits (from a task; use xEventGroupSetBitsFromISR from an ISR)
xEventGroupSetBits(EventGroupHandle_t xEventGroup, EventBits_t uxBitsToSet);

// Wait for any or all of the specified bits
EventBits_t xEventGroupWaitBits(
    EventGroupHandle_t xEventGroup,
    EventBits_t        uxBitsToWaitFor,
    BaseType_t         xClearOnExit,    // pdTRUE to clear matched bits after return
    BaseType_t         xWaitForAllBits, // pdFALSE = any bit, pdTRUE = all bits
    TickType_t         xTicksToWait);

Event Groups Guide Full API documentation and usage patterns — xEventGroupCreate, xEventGroupSetBits, xEventGroupWaitBits.

Applying event groups to audio feedback

The buzzer task from Lab 1 used a queue to receive (frequency, duration) pairs. This lab uses a different pattern: an event group that signals which kind of event occurred, and the buzzer task decides the tone.

Define two bits:

#define EVT_FOOD_EATEN  (1 << 0)
#define EVT_GAME_OVER   (1 << 1)

When vSnakeTask detects food eaten, it sets EVT_FOOD_EATEN. When it detects a collision, it sets EVT_GAME_OVER. The buzzer task waits for either bit and plays a different tone for each:

void vBuzzerTask(void *pvParameters) {
    for (;;) {
        EventBits_t bits = xEventGroupWaitBits(
            xGameEvents,
            EVT_FOOD_EATEN | EVT_GAME_OVER,
            pdTRUE,       // clear the bits after waking
            pdFALSE,      // wake on any bit (not all)
            portMAX_DELAY
        );

        if (bits & EVT_FOOD_EATEN) {
            // short, high-pitched beep
        }
        if (bits & EVT_GAME_OVER) {
            // long, low-pitched tone
        }
    }
}

Create xGameEvents before the scheduler starts. Declare it in app_objects.h and define it in main.cpp.

Report Question 3: Could you have implemented this with two separate binary semaphores instead of one event group? What would be different? Why is the event group cleaner when you have more than two events?

---

Final Project Structure

By the end of the lab your project should look like this:

• main.cpp # System init, task creation, event group creation
• app_objects.h # gContext, gSysClk, xMutexGame, xGameEvents, task handles
• game.h / game.cpp # SnakeGameState, food, score, ResetGame, moveSnake, collision
• display.h / display.cpp # LCD_Init, DrawGame, DrawGameOver
• buzzer.h / buzzer.cpp # vBuzzerTask, Buzzer_Init
• FreeRTOS.h / FreeRTOSConfig.h
• startup_ccs.c
• DirectoryFreeRTOS/

  • …

main.cpp should look like system glue: hardware init, shared object creation, task creation, scheduler start. All game logic, all drawing logic, and all buzzer logic live in their own files.

---

Integration Checklist

Before demonstrating to a TA, verify each of the following:

• Snake moves with joystick; direction reversal is prevented
• Food appears on screen and never spawns on the snake body
• Eating food grows the snake, increments the score, and speeds up the game
• Self-collision triggers the game over state
• Game over screen shows final score; S2 restarts
• Pause (S1) works during PLAYING; does nothing during GAME_OVER
• Eating food plays a distinct short beep
• Game over plays a distinct longer tone
• No visual corruption under stress (rapidly press buttons and tilt joystick)
• All LCD access is guarded by the mutex; no vTaskDelay inside the critical section

---

Lab Report (25 points)

The report must be written in clear, professional English. Do not paste your entire source code into the report — include only the relevant snippets when illustrating a point.

Required sections

1. Introduction (2 pts)
Describe the purpose of the lab and summarize what you built.

2. System Architecture (5 pts)
Include a diagram showing all tasks, their priorities, the shared objects (mutex, event group, notification path), and the data each task reads and writes. Explain your priority assignment.

3. Analysis Questions (13 pts)

• Q1 (4 pts): Answer the three questions from Part 0. For Q1 and Q2, support your answer with a concrete example of what could go wrong without protection.

• Q2 (3 pts): Compare polling (vTaskDelayUntil every 33 ms) against task notifications for rendering. Give a scenario where each approach is better and explain why.

• Q3 (3 pts): Explain your mutex design: how many mutexes did you use, what region does each protect, and what is the maximum time any task holds the mutex? What would happen to the game if a task held the mutex for 200 ms?

• Q4 (3 pts): Describe a scenario where both EVT_FOOD_EATEN and EVT_GAME_OVER are set before vBuzzerTask wakes up. What does xEventGroupWaitBits return in that case? Does your buzzer task handle it correctly?

4. Design Decisions (3 pts)
Explain three design choices that were not dictated by the lab instructions. For each: what did you choose, what was the alternative, and why did you choose the way you did?

5. Conclusion (2 pts)
What was the hardest part of this lab? What would break first if the system had twice as many tasks at the same priorities?

---

Submitting Source Code

1. Name your project ece3849_lab3_<username>.
2. Right-click the project in CCS → Export... → General → Archive File.
3. Name the output file ece3849_lab3_<username>.zip.
4. Upload the .zip and your lab report PDF to Canvas.

---

Useful References

FreeRTOS Semaphores and Mutexes Guide Mutex vs. binary semaphore, priority inheritance, API reference.

Task Notifications Guide xTaskNotifyGive, ulTaskNotifyTake, and when to prefer notifications over semaphores.

Event Groups Guide xEventGroupCreate, xEventGroupSetBits, xEventGroupWaitBits — with patterns for game state machines.

FreeRTOS Queues Guide Review of inter-task communication with queues from Lab 1.
